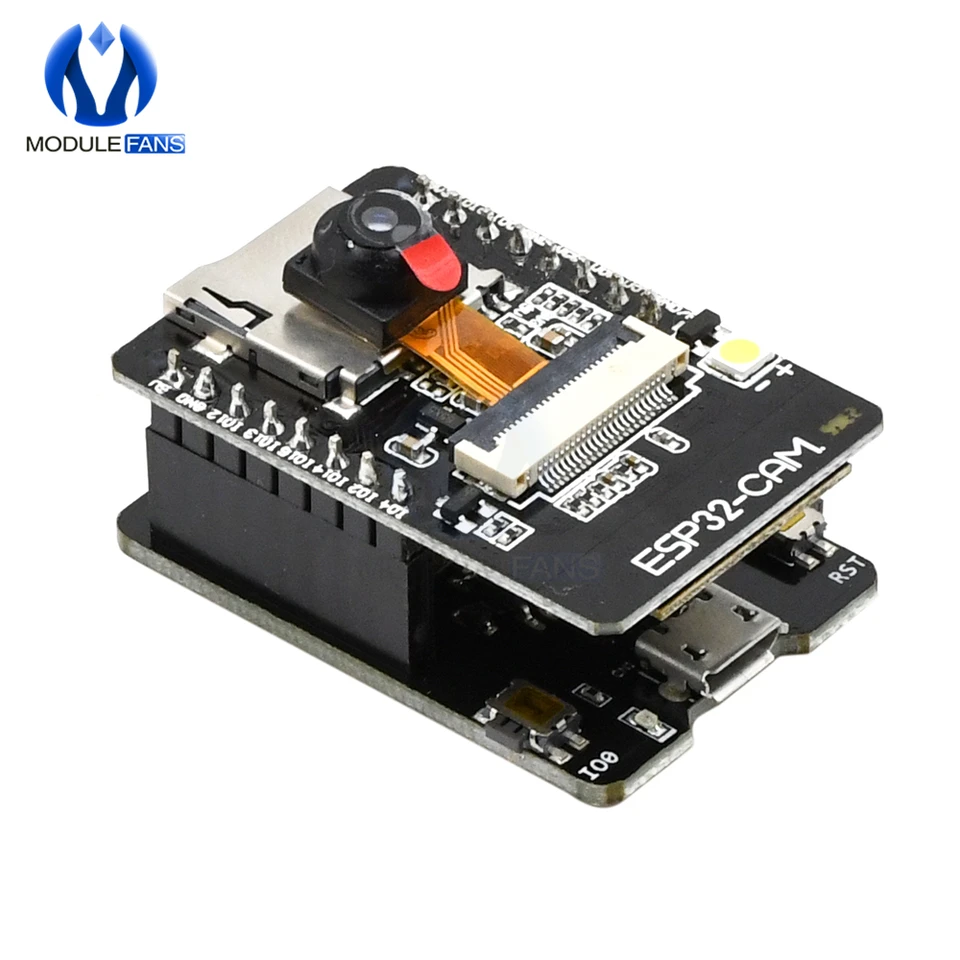

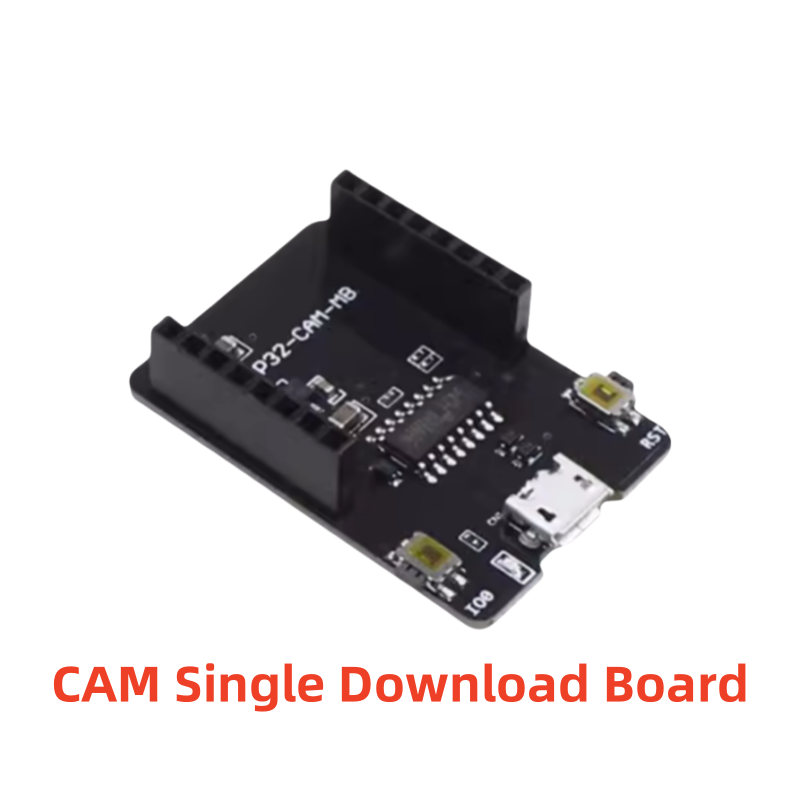

UART baudrate rate: default 115200bps Power supply: 5V Transmitting power: 802.11b: 17 ±2dBm (@11Mbps) 802.11g: 14 ±2dBm (@54Mbps) 802.11n: 13 ±2dBm (@HT20,MCS7) The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm Power consumption: Flash off: 180mA@5V It is suitable for home intelligent equipment, industrial control, monitoring, QR identification, positioning system and other iot applications. Flash on and brightness max: 310mA@5V What's Included 1x ESP32 CAM 1x TTL DownloaderDimensions 40.5 x 27 x 4.5 mm Features: It is suitable for low power dual core 32-bit cpus of application processors Main frequency up to 240MHz, computing capacity up to 600 DMIPS Built in 520 KB, external 4M PSRAM Support UART/Serial Peripheral Interface/I2C/PWM/ADC/DAC and other interfaces Support OV2640 and OV7670 cameras with built-in flash Supports photo uploading via WiFi; Support STA//STA + working mode Support the small memory card, Supports multiple sleep patterns Embedded Lwip and FreeRTOS;Support secondary development Support for Smart Config/AirKiss one-click distribution networks It can be widely used in various occasions of the Internet of things. Esp32 Cam WiFi Bluetooth Camera Module Development Board In Pakistan Esp32 Camera It is powered by a low-energy 32-bit CPU that can also serve as the application processor. RAM: Internal 512KB + External 4M PSRAM WiFi protocol: IEEE 802.11 b/g/n/e/i Bluetooth: 4.2 BR/EDR and BLE Specification: Model: ESP32-S Support interface:UART/Serial Peripheral Interface/I2C/PWM/ADC/DAC Support cameras:OV2640 and OV7670 Package list: 1 x Camera development board 1 x Camera Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. ESP32 CAM Module ESP32S Development Board with TTL Downloader & OV2640 Camera WIFI mode: Station / SoftAP+Station The ESP32 CAM WiFi Module Bluetooth integrates the ESP32-S chip, offering both WiFi and Bluetooth connectivity in a compact module. This versatile module is specifically designed for IoT applications, combining wireless communication capabilities with a camera interface Widely Applications: This Camera Module Board has widely applications, which can be widely used in various of the Internet of things. It is suitable for home intelligent equipment, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system and other iot applications. Variety Supports Mode: Support UART/Serial Peripheral Interface/I2C/PWM/ADC/DAC and other interfaces, support OV2640 and OV7670 cameras with built-in flash, supports photo uploading via , support STA/AP/STA + AP working mode, support the T-F card, supports multiple sleep patterns. The module supports UART/SPI/I2C/PWM/ADC/DAC and comes with a built-in Flash lamp in the OV2640 cameras.
